Long chain zipper rolling and winding machine
Summary: This Automatic Bobbin Rolling Type Long-chain Zipper Winding Machine is equipped with one speed adjuster.
Product Name : Automatic Long-chain Zipper Winding Machine (cardboard bobin model)
Model : PRIMO PM-131
Summary : This Rolling Type Automatic Bobbin Winding Machine Zipper Long -chain IS Equipped with One Speed adjuster.
Machine Information
Model No.: PM-131
Output: 100-300Y/Min
Power: 380V, 50HZ, 3PH, 0.4KW
M/C size: 1.13*0.84*1.4M
Packing size: 1.2*0.9*1.5M
NW : 110KG , GW: 187KG
Features
This Machine is equipped with one speed adjuster.
Main Feature
This machine wind the long chain zipper in high speed and accurate long chain length, tolerance is between 10~20cm,operate easily.
Auto Double Film Zipper Tape Sealing Machine | |
Model | PM-131 |
Power | 0.75KW |
Production | 7500m/H |
Volt | 220V |
Machine Weight | 85Kgs |
Machine Dimensioms(L×W×H) | 0.70×0.50×0.75 m |
Shipping Measurement(L×W×H) | 0.72×0.55 ×0.80 m |
Long Chain Zipper Guidance System
This guidance mechanism utilizes sensor-controlled front guides to precisely regulate the movement of continuous-length zipper chains during production.
(Operational Principle:
The front-mounted sensor array detects and monitors zipper chain position Automaticall yadjusts guide components to maintain proper alignment Ensures consistent feed ofextended-length zipper material
Core Functionality
- Sensor-based positioning system
- Long chain zipper tracking
- Front guide regulation
Counter Roller and Pressure Roller System
This system performs zipper length measurement through the coordinated action of upper andlower rubber rollers: The upper pressure roller presses the zipper against the lower counter rollerand when the sensor detects exactly 3 complete rotations of the counter roller, it completes them easurement of 1 yard of zipper length.
Working Principle:
The pressure roller applies vertical force to ensure firm contact between zipper and counterroller
Optical sensors precisely record roller rotation counts
Standard measurement conversion: 3 rotations = 1 yard length)*

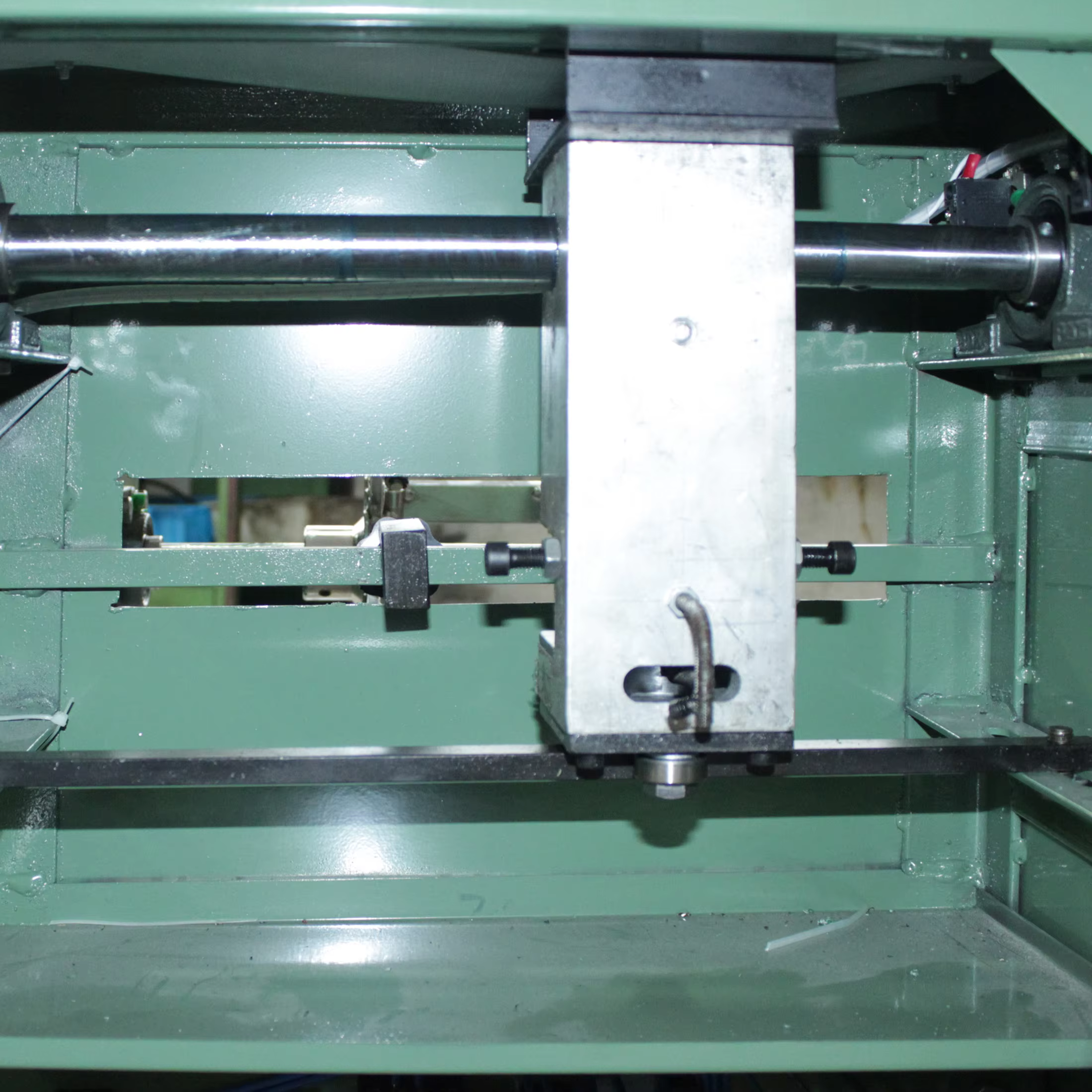

This system ensures balanced winding of long-chain zippers through controlled reciprocatingmotion of the winding mechanism.
Operational Principle:
The winding assembly moves in precise back-and-forth patterns
Synchronized motion distributes zipper material evenly across the spool
Maintains consistent tension throughout the winding process
Winding System for Long Chain zippers
This system utilizes a precision winding roller to neatly coil continuous-length zipper chains whileensuring smooth material discharge when needed.
Functional Operation:
The motorized winding roller rotates to gather zipper material
Maintains proper tension during winding process
Allows controlled unwinding with minimal resistance
Primo Zipper Machine Feature
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.
