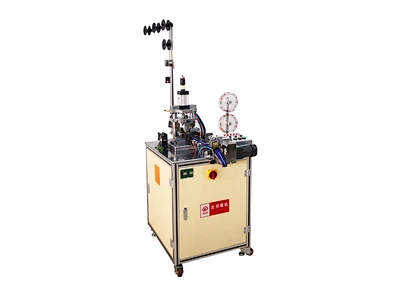

Auto tape sealing machine
Summary: This machine is with touch screen. The speed can be adjusted freely and the faults are shown on the screen which helps to guide technicians to solve the fault faster and more efficiently.
Product Name: Auto tape sealing machine
Model number : PRIMO PM-301-N
The Summary: This is Machine with Touch Screen at the Speed can be Adjusted Freely and at The Faults are Shown to on at the Screen Which Helps Guide to the Solve Technicians at The Fault Faster and more Efficiently..
Remarks:
1) This machine is with touch screen. The speed can be adjusted freely and the faults are shown on the screen which helps to guide technicians to solve the fault faster and more efficiently.
2) Different with old model machine, this machine is with fixed welding head and the film is cut by cutter holder. If the film can't be cut, it only needs to change the cutter and no need to change the welding head.
Main Feature
This Zipper machine adopts double teeth selection knife to gap and trim the gapping length, the location only by servo motor. this process keep teeth safe,not need to select teeth by hand, save labor and space,improve the efficiency.
Auto Double Film Zipper Tape Sealing Machine | |
Model | PM-301 |
Power | 1.5KW |
Production | 1600pcs/H with 60cm zipper |
Volt | 220V |
Machine Weight | 200Kgs |
Machine Dimensioms(L×W×H) | 1.65×0.65×1.80 m |
Shipping Measurement(L×W×H) | 1.00×0.70 ×1.50 m |
Ultrasonic Sealing Tape System
This zipper machine system utilizes ultrasonic dies to heat and bond the upper and lower double-layer films while simultaneously sealing the dual-side tapes.
(Technical Implementation: High-frequency vibration from the ultrasonic dies generates heat energy, enabling firm bonding between the two film layers and dual-side tapes under pressure.)
Process Characteristics
Ultrasonic heat-sealing technology
Simultaneous processing of double-layer films
Integrated dual-side tape sealing
Film Feeding System
This zipper machine system employs a pneumatic cylinder to transport double-layer film into the die, while utilizing sensors for precise control of film feed length and positioning.
(Operational Principle: The air cylinder provides controlled linear motion to advance the film, with integrated sensors monitoring and adjusting the feed parameters to ensure accurate placement.)
Key Functional Components
Pneumatic cylinder drive mechanism
Film length detection sensors
Position control system
System Characteristics
Positive displacement film advancement
Closed-loop feed control
Deterministic positioning accuracy
This zipper machine system uses sensors and a needle mechanism to control the tape length fed into the mold.
(Working Principle: The sensor detects tape position while the needle precisely cuts or positions the tape to achieve accurate length control before entering the mold.)
Key Features:
Sensor-based tape length detection
Needle mechanism for precise tape control
Consistent tape feeding into the mold
Pressure Roller System
This zipper machine system utilizes pressure rollers to compress and extract the zipper from the machine after the film sealing process is completed.
(Working Principle: The pressure rollers apply controlled force to grip and smoothly pull out the zipper component while maintaining seal integrity.)
System Features
Mechanical extraction process
Sealed film protection
Consistent pulling force
Primo Zipper Machine Feature
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.
