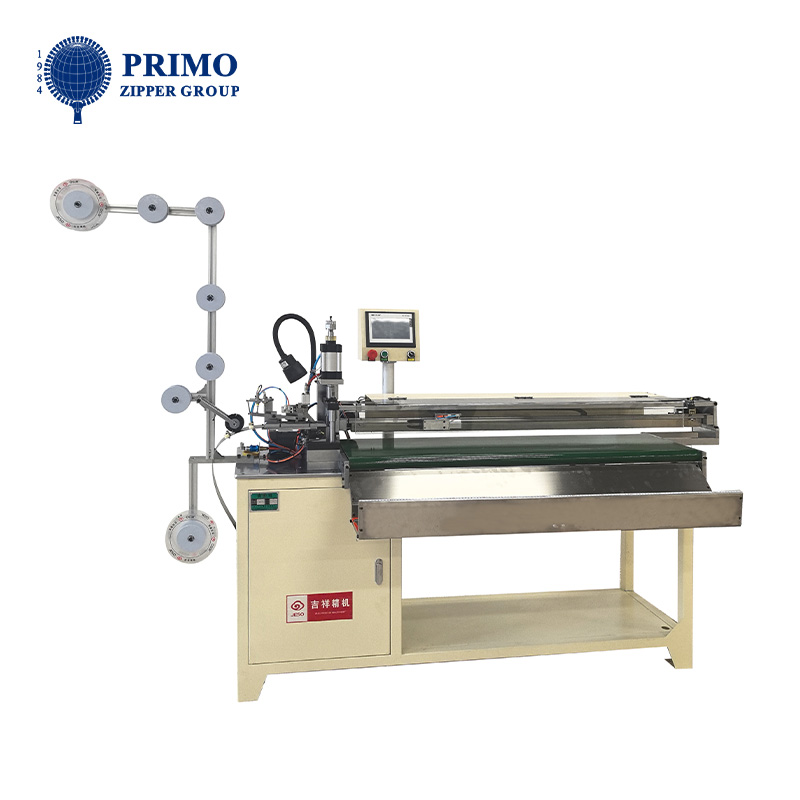

Normal open end cutting machine with robot arm
It is suitable for bag, luggage and bedding zippers.
Product Name: Normal open end cutting machine with robot arm
Model Number: PRIMO PM-081-N
Commonality:
1. Different materials can not be commonly used by one machine.
2. Different sizes can not be commonly used by one machine.
3. Same slider body with different fancy pullers can be commonly used by one machine by changing slider mounting mould.
Advantages:
1. This machine could mount sliders without gapping length.
2. With three functions of cutting, slider mounting and setting length together, it improves output and saves labour cost so much.
3. Different length can be cut by adjusting the length on the PLC controller.
4. It is suitable for luggage zippers, bedding zippers and sofa zippers.
5. Nylon, invisible, metal and plastic zipper can be done with this machine.
Main Feature
This machine adopts robot arm to pull the zipper when it cut, it apply to all shape type slider to passthe cutting knife, hook location, the cutting edge is smooth, operate easily,improve effciency
Auto Double Film Zipper Tape Sealing Machine | |
Model | PM-081 |
Power | 0.75KW |
Production | 1600pcs/H with 60cm zipper |
Volt | 220V |
Machine Weight | 245Kgs |
Machine Dimensioms(L×W×H) | 2.15×0.55×1.45 m |
Shipping Measurement(L×W×H) | 0.80×0.60 ×1.50 m |

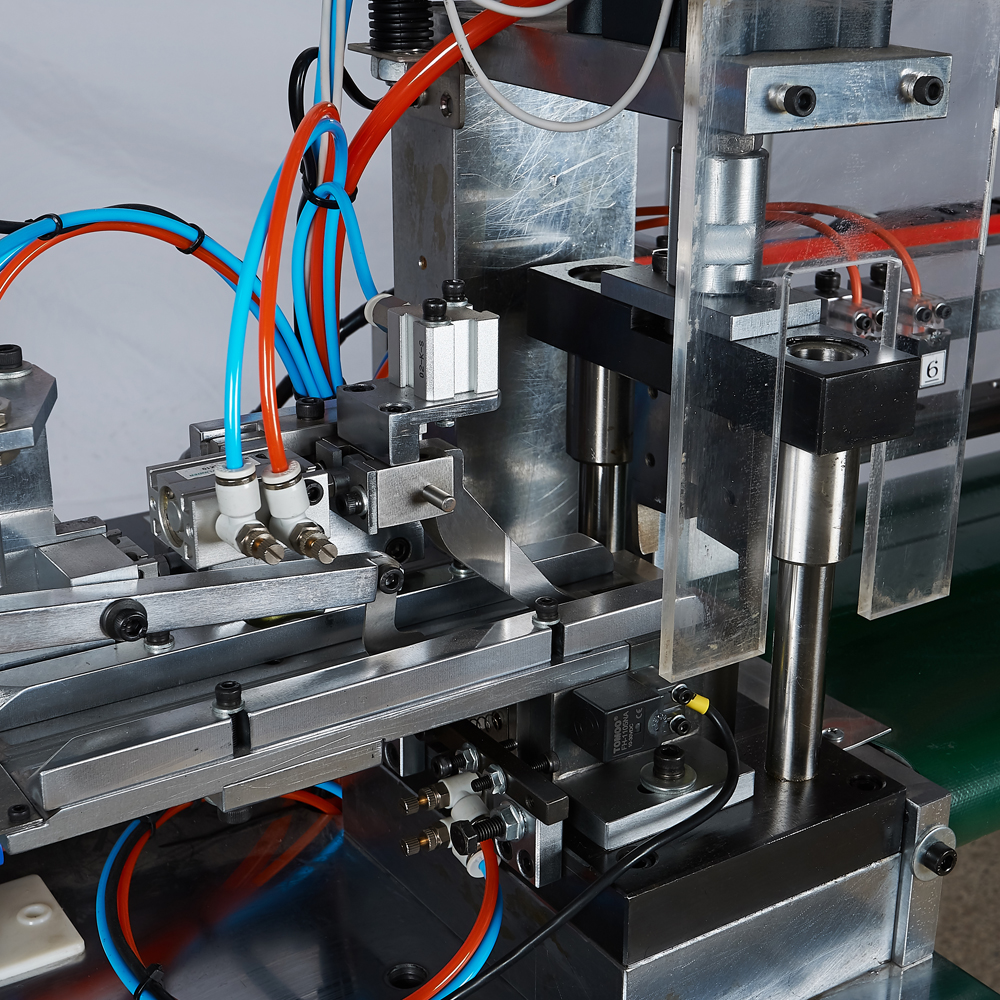

Cutting Die System
This precision system securely positions and cleanly cuts zipper chains with exceptional accuracy.
Cutting Process
Hook mechanism locks zipper in perfect alignment
Hardened steel die performs clean shear cut
Ejects finished zipper segment

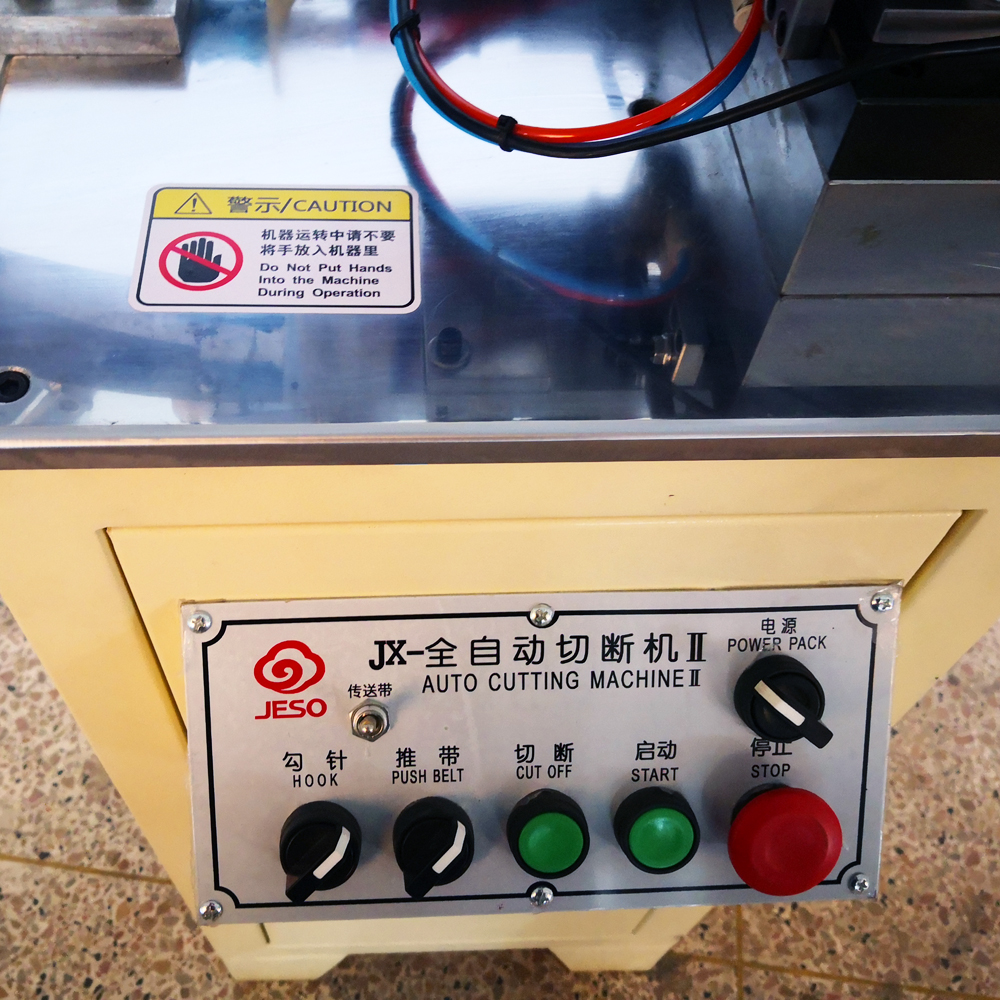

Simple Control Button System
This intuitive interface provides essential machine control through clearly labeled tactile buttons for straightforward operation.
Control Functions:
start/Stop -Main process control
Lock-Material clamping activation
Pull Tape -Controlled material advancement
Cut -Precision cutting initiation
This pre-cutting alignment system ensures zipper tapes maintain perfect positioning beforeentering the cutting mold.
Positioning Process:
Entry Guide Rollers - Initial tape alignment
Precision channels - Constrained path guidance
Final Orientation -Mold-ready positioning
Robot Arm System for Zipper Handling
This versatile robotic system automatically extracts all zipper types from cutting dies, featuringuniversal compatibility with any slider shape.
Operation sequence
Adaptive Gripping -Shape-agnostic end effector engages slider
Precision Extraction -Controlled removal from die cavity
Oriented Placement - Consistent positioning for downstream processes
Primo Zipper Machine Feature
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.
QUALITY ZIPPER MAKING
SOLUTION SUPPLIER
- Since 1984
Wenzhou Primo Zipper Machine Co., Ltd(JESO) is a professional zipper making machine.
factory has been engaged in 1984. have 40 years of experience in zipper making machine,provides a combined service in the zipper production line.
- We also supply all kinds of zipper(nylon zipper,plastic zipper,metal zipper, waterproof zipper and another type zipper) and zipper accessories.We are serving a good valid zipper production solution for customers from all of the world.
- Save your time in choosing machines and materials with our rich experience
